Choosing the right warehouse lighting isn't just about brightness — it's about matching the fixture to the space. Two of the most commonly compared options for industrial and commercial settings are LED high bay lights and wraparound fixtures. At first glance, both promise energy efficiency and long lifespans, but they serve distinctly different purposes. Install the wrong type, and you'll either end up with wasted energy from over-engineered fixtures or underwhelming illumination that creates safety hazards on the floor.

This guide breaks down everything you need to know about LED high bay vs. wraparound fixtures — covering ceiling height requirements, light distribution patterns, energy consumption, installation considerations, and the best applications for each. Whether you're outfitting a large distribution center or a lower-ceiling commercial space, you'll walk away knowing exactly which fixture belongs in your building.

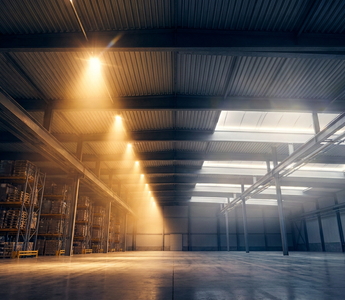

What Is an LED High Bay Light?

An LED high bay light is a powerful industrial-grade fixture specifically engineered for spaces with ceiling heights of 15 feet or more — and in many warehouse environments, that means 20 to 40-plus feet overhead. These fixtures are designed to throw a concentrated, high-intensity beam of light downward over a long distance without losing significant foot-candles by the time the light reaches the floor level where workers and equipment operate.

High bay lights come in two primary form factors. UFO (round) high bays feature a compact disc-shaped housing with an integrated heat sink and deliver a circular beam pattern. Linear high bays have an elongated housing that distributes light in a wider, more rectangular spread — making them well-suited for aisled layouts. Both designs prioritize thermal management, high lumen output, and durability for demanding industrial environments. Amico's LED High Bay Lights are built to meet the demands of large-footprint commercial and industrial spaces, combining energy efficiency with reliable performance.

What Is a Wraparound Fixture?

A wraparound fixture — sometimes called a wrap light or strip wrap — is a surface-mounted or suspended linear LED fixture enclosed in a translucent diffuser that wraps around three sides of the housing. This design allows light to radiate downward and sideways simultaneously, producing a softer, more diffused illumination pattern compared to the focused downlight of a high bay.

Wraparound fixtures are typically available in 2-foot and 4-foot lengths, with wattages ranging from roughly 20W to 60W. They're a popular choice for commercial spaces with ceilings between 8 and 15 feet — think office buildings, retail backrooms, utility corridors, stairwells, and light-duty storage areas. The diffused light output minimizes harsh shadows and glare, making them comfortable for environments where people work in close proximity to the fixtures. Compared to high bays, wraparounds are lighter, lower-profile, and easier to install without specialized mounting hardware. Amico also offers LED Flat Panel Lights as another diffused-light alternative for drop-ceiling commercial applications.

Key Differences at a Glance

Before diving into the details, here's a high-level snapshot of how these two fixture types compare across the most critical decision factors:

Ceiling Height: The Most Important Factor

Ceiling height is the single most decisive factor when choosing between a high bay and a wraparound fixture. It determines how much light energy dissipates before reaching the working surface, which directly impacts the foot-candles (the measurable brightness at floor level) that your space actually receives.

High bay lights are rated for ceilings 15 feet and above. At those heights, a wraparound fixture simply cannot deliver adequate foot-candles at floor level — its lumen output is too low, and its diffused beam spreads the light too broadly to concentrate enough intensity over a long vertical distance. High bays solve this problem by concentrating lumens into a tighter beam angle (often 60 to 120 degrees), ensuring that the light reaches the floor at usable intensities even from 30 or 40 feet up.

Wraparound fixtures perform best between 8 and 15 feet. At these heights, their lower wattage is actually an advantage — you don't need 10,000 lumens to properly illuminate a 10-foot ceiling space. Overshooting with a high bay fixture in a low-ceiling room creates uncomfortable glare, uneven illumination near the walls, and unnecessarily high energy bills. Matching fixture output to the vertical distance is key to both comfort and efficiency.

Light Distribution and Coverage

Beyond ceiling height, the shape and spread of each fixture's light pattern significantly affects how evenly your space is illuminated. High bays — particularly UFO-style round fixtures — project a circular cone of light directly below. A single UFO high bay in the center of an aisle can deliver strong foot-candles in its zone, but the edges of its coverage pattern may drop off noticeably. This is why proper spacing calculations matter: most industrial lighting plans call for high bays to be spaced at a distance roughly equal to the mounting height divided by 1.5 for overlapping coverage.

Linear high bays offer a rectangular distribution pattern that maps naturally onto warehouse aisles, shelving rows, or production lines. If your floor plan is organized in long, parallel channels, linear high bays can be aligned above each aisle to deliver consistent, even brightness from end to end. Wraparound fixtures, by contrast, cast light outward in three directions simultaneously. In low-ceiling spaces — hallways, utility rooms, or smaller storage areas — this broad spread is actually beneficial because it reduces dark corners and softens shadows, making the environment more visually comfortable for occupants who are in close proximity to the fixtures.

Energy Efficiency and Long-Term Savings

Both LED high bay lights and wraparound fixtures are dramatically more energy-efficient than their fluorescent or metal halide predecessors. A 100-watt LED high bay can replace a 400-watt metal halide fixture while producing equivalent or superior lumen output. Over a 50,000-hour lifespan — which is the standard you should expect from quality LED fixtures like those from Amico — the energy savings compound into thousands of dollars at scale, especially for facilities running lights during multiple shifts.

Wraparound LED fixtures, operating in the 20W to 60W range, are inherently low-draw fixtures. For spaces where they're the appropriate choice (lower ceilings, lighter-duty areas), they keep operating costs minimal. The critical efficiency mistake many facilities make is using the wrong fixture type for the application — installing high bays in a 10-foot ceiling space wastes energy on over-illumination, while using wraparounds in a 30-foot warehouse creates the opposite problem and forces you to install far more fixtures to compensate, undermining the savings. Both Amico high bay and wraparound-style fixtures carry ETL and FCC certifications, and their integrated LED modules are rated for 50,000-plus hours, meaning replacements and re-lamping costs stay close to zero over the fixture's useful life.

Installation and Maintenance

Installation complexity differs meaningfully between these two fixture types. High bay lights typically mount via a hook-and-cable suspension system, a rigid conduit mount, or a surface-mount bracket depending on the design. At heights of 20 to 40 feet, installation requires lift equipment and appropriate safety protocols — a consideration for both initial cost and any future servicing. The good news is that with a 50,000-hour LED lifespan, servicing is rarely needed, making those infrequent installation trips well worth the initial effort.

Wraparound fixtures are considerably simpler to install. Most surface-mount directly to a junction box on the ceiling, or suspend via a short chain, and can be handled from a standard ladder in lower-ceiling spaces. For wiring multiple fixtures in the same area, all fixtures should be connected in parallel, not in series. When making wire connections, push-in wire connectors are the recommended choice: simply insert stripped wire ends into the connector ports until they click — no twisting required. This method delivers more reliable, code-compliant connections compared to traditional alternatives and speeds up the installation process significantly. Maintenance for both fixture types is minimal given LED longevity, but wraparounds have the additional convenience of being easier to access for cleaning the diffuser lens when needed.

Best Applications for Each Fixture Type

Where LED High Bay Lights Excel

• Distribution warehouses and fulfillment centers with ceilings of 20 feet or higher, where strong foot-candle levels are required for safe forklift operation and inventory management
• Manufacturing facilities and factories that require consistent, high-intensity illumination across wide production floor areas
• Gymnasiums and sports facilities where ceiling heights often exceed 20 feet and even light distribution across a large horizontal plane is essential
• Airplane hangars and large equipment bays where broad, powerful overhead coverage is needed across very large footprints
• Retail big-box stores with open-plan, high-ceiling layouts that benefit from the clean, commercial look of industrial-grade lighting

Where Wraparound Fixtures Excel

• Utility corridors, stairwells, and hallways in commercial buildings where a lower-profile fixture and diffused light create a safe, comfortable environment
• Office storage rooms and backrooms in retail environments with standard 8 to 12-foot ceilings
• Light-duty storage areas and mechanical rooms where function and economy are the primary requirements
• Laundry rooms, utility spaces, and similar residential or semi-commercial areas that need reliable, energy-efficient overhead lighting without the complexity of high bay installation
• Parking structures with lower clearances where ceiling heights don't call for the intensity of a high bay but durability and even coverage remain important

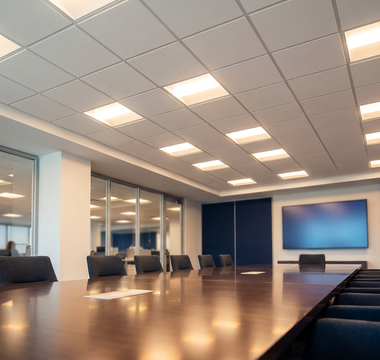

For spaces that fall outside both categories — such as finished office environments or commercial drop ceilings — Amico's LED Flat Panel Lights offer a clean, professional alternative that recesses flush into grid ceilings for uniform, glare-free illumination. For safety-critical pathways and exits in any facility, pairing your primary fixtures with Emergency Exit Lights ensures code compliance and occupant safety during power interruptions.

Which One Should You Choose?

The answer comes down to three variables working together: ceiling height, required foot-candle levels, and the nature of the activity in the space. If your ceiling is below 15 feet and you need general ambient lighting for people working in or moving through the space, a wraparound fixture is almost always the right call — it's simpler, less expensive, and perfectly matched to the task. If your ceiling is 15 feet or higher and you're dealing with heavy-duty industrial activity, racking systems, machinery, or vehicular traffic that demands strong, reliable overhead illumination, an LED high bay is the correct tool for the job.

For facilities that contain both types of spaces — for example, a warehouse floor with 30-foot ceilings attached to a connected office wing with 10-foot ceilings — using both fixture types in their appropriate zones is common practice and the most cost-effective approach. Amico's comprehensive lineup covers both categories, making it straightforward to source all your fixtures from a single trusted supplier. All Amico LED fixtures are ETL and FCC certified, backed by warranties of up to 5 years, and eligible for free sitewide shipping — giving facility managers and contractors the reliability and value they need for both small and large-scale projects. With a CRI of 80 or higher across the lineup, colors and details render accurately under Amico fixtures, which matters for quality control, safety signage visibility, and overall worker comfort.

FAQs

Can I use a wraparound fixture in a warehouse?

Only if your warehouse has ceilings below approximately 15 feet. For taller spaces, wraparound fixtures won't deliver sufficient foot-candles at floor level, and you'll need LED high bay lights to achieve safe, productive lighting levels.

How many LED high bay lights do I need for my space?

A general starting point is to space high bays at a distance equal to your mounting height divided by 1.5, then calculate coverage area per fixture. However, exact quantity depends on required foot-candles, fixture lumen output, beam angle, and reflectance of your surfaces. Consulting a lighting layout tool or working with a supplier experienced in industrial lighting will give you a more precise plan.

What color temperature (CCT) should I choose for warehouse lighting?

For most warehouse and industrial applications, 4000K (neutral white) to 5000K (daylight) is recommended. These higher color temperatures improve alertness, enhance visibility of fine detail and safety markings, and most closely mimic natural daylight conditions. For spaces where a warmer atmosphere is preferred, 3500K is a reasonable compromise.

Are LED high bay lights dimmable?

Many LED high bay lights, including models in Amico's lineup, support dimming when paired with a compatible dimmer switch or control system. Dimming capability allows facilities to reduce energy consumption during off-peak hours or in sections of the warehouse that are temporarily unoccupied, adding another layer of operational savings.

What is the lifespan of an LED high bay or wraparound fixture?

Quality LED fixtures — including Amico's high bay lights and commercial fixtures — are rated for 50,000 or more hours of operation. At 16 hours of daily use, that translates to well over 8 years of service life before any performance degradation becomes significant, dramatically reducing maintenance and replacement costs compared to fluorescent alternatives.

Understanding the difference between LED high bay lights and wraparound fixtures is one of the most practical things a facility manager, contractor, or business owner can do before committing to a lighting upgrade. The right choice reduces energy bills, improves safety, and creates a more productive environment — while the wrong one can mean expensive retrofits down the road. Match the fixture to the ceiling height and the task at hand: high bays for tall, demanding industrial spaces and wraparounds for lower-ceiling commercial and utility areas. Amico's lineup covers the full spectrum of commercial and industrial lighting needs, with ETL-certified, energy-efficient fixtures backed by strong warranties and free shipping that make it easier than ever to get the right fixture for every space in your facility.
